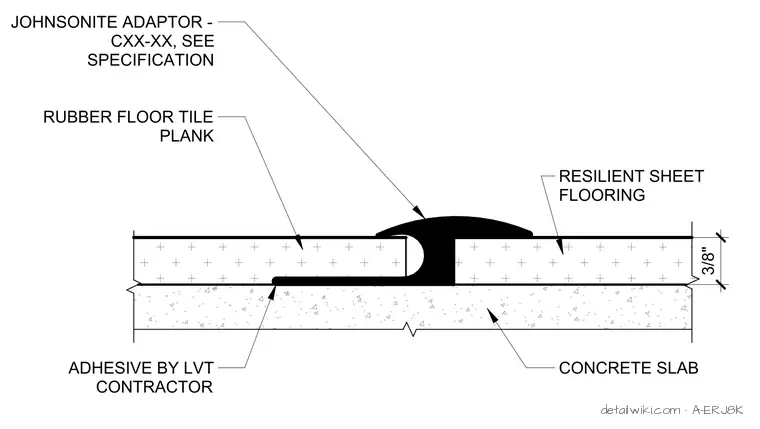

This transition assembly connects rubber floor tile planks to resilient sheet flooring over a three-eighths inch thick concrete slab. A Johnsonite adaptor, model CXX-XX as specified, bridges the gap between the two flooring materials. The rubber floor tile is secured with adhesive provided by the luxury vinyl tile contractor. The assembly ensures a flush or near-flush transition between the two distinct flooring types.
