The assembly features a reflectorized galvanized steel sign with a porcelain finish and beaded text mounted on a 3-inch square anodized aluminum sign post and tubular sleeve. The tubular sleeve fastens to the post with two theft-resistant screws on each side and is tack welded to the sign panel with the weld ground smooth to prevent exposed fasteners on the face. A supplemental minimum fine sign is mounted beneath the main panel in compliance with accessibility codes. The post extends downward into a sidewalk or asphalt concrete paving and a concrete pier foundation.

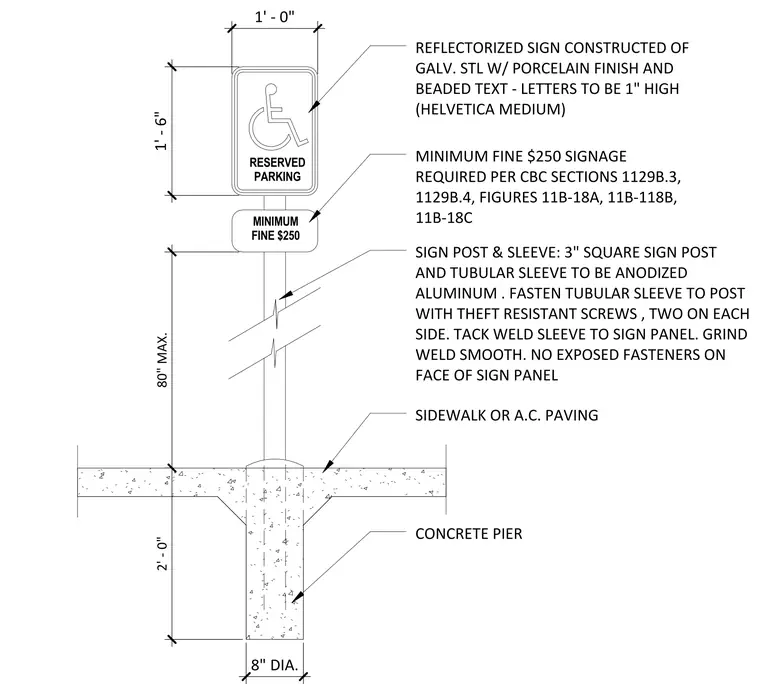

REFLECTORIZED SIGN CONSTRUCTED OF GALV. STL W/ PORCELAIN FINISH AND BEADED TEXT ‐ LETTERS TO BE 1" HIGH (HELVETICA MEDIUM) SIGN POST & SLEEVE: 3" SQUARE SIGN POST AND TUBULAR SLEEVE TO BE ANODIZED ALUMINUM . FASTEN TUBULAR SLEEVE TO POST WITH THEFT RESISTANT SCREWS , TWO ON EACH SIDE. TACK WELD SLEEVE TO SIGN PANEL. GRIND WELD SMOOTH. NO EXPOSED FASTENERS ON FACE OF SIGN PANEL SIDEWALK OR A.C. PAVING CONCRETE PIER MINIMUM FINE $250 SIGNAGE REQUIRED PER CBC SECTIONS 1129B.3, 1129B.4, FIGURES 11B‐18A, 11B‐118B, 11B‐18C 1' ‐ 0" 1' ‐ 6" 80" MAX. 2' ‐ 0" 8" DIA. RESERVED PARKING MINIMUM FINE $250
