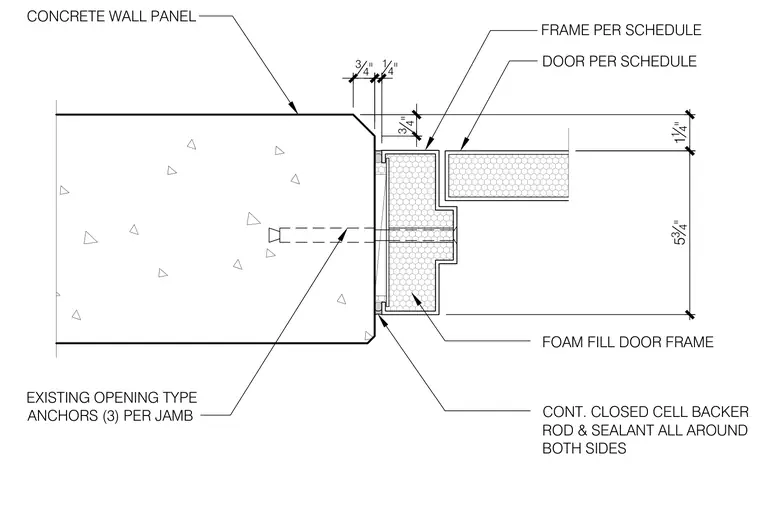

A door frame per schedule connects to an existing concrete wall panel using three anchors per jamb. The frame is foam-filled internally and sealed against the concrete wall on both sides with continuous closed-cell backer rod and sealant.
CONCRETE WALL PANEL CONT. CLOSED CELL BACKER ROD & SEALANT ALL AROUND BOTH SIDES DOOR PER SCHEDULE FRAME PER SCHEDULE 3 4 " 5 3 4 " 14 " EXISTING OPENING TYPE ANCHORS (3) PER JAMB FOAM FILL DOOR FRAME 1 1 4 " 3 4 "
