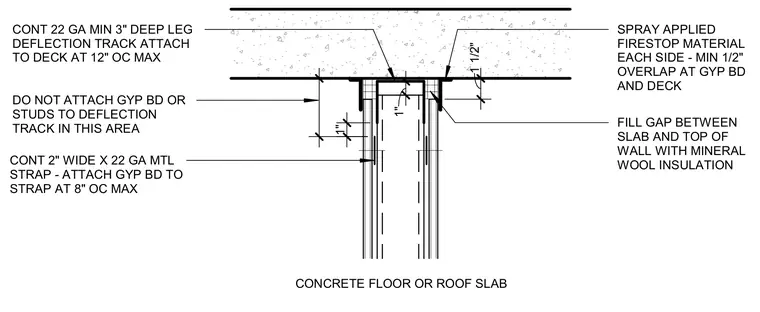

A continuous 22-gauge minimum 3-inch deep leg deflection track is anchored to the concrete floor or roof slab at a maximum of 12 inches on center. The gap between the slab and the top of the wall is filled with mineral wool insulation and sealed on each side with spray-applied firestop material maintaining a minimum 1/2-inch overlap at the gypsum board and slab. Gypsum board and studs remain unattached to the deflection track in this area to accommodate vertical movement. A continuous 2-inch wide by 22-gauge metal strap spans the joint, with gypsum board attached to the strap at a maximum of 8 inches on center.
1" 1" 4 27/128" 1 1/2" FILL GAP BETWEEN SLAB AND TOP OF WALL WITH MINERAL WOOL INSULATION SPRAY APPLIED FIRESTOP MATERIAL EACH SIDE - MIN 1/2" OVERLAP AT GYP BD AND DECK CONT 2" WIDE X 22 GA MTL STRAP - ATTACH GYP BD TO STRAP AT 8" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX CONCRETE FLOOR OR ROOF SLAB
