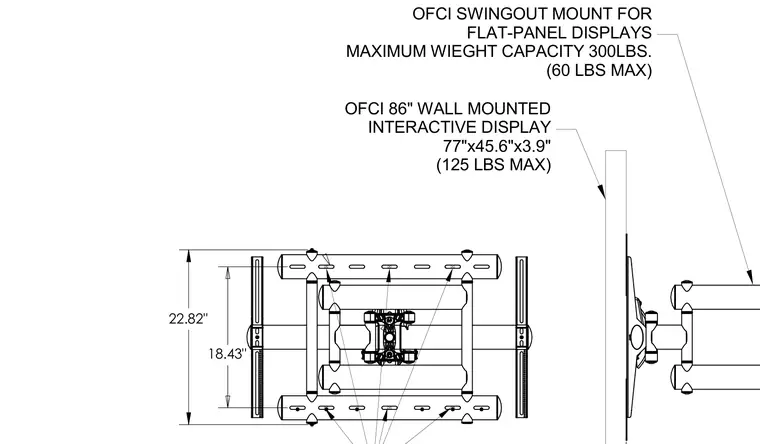

An Owner Furnished Contractor Installed eighty-six inch wall-mounted interactive display measuring seventy-seven by forty-five point six by three point nine inches with a maximum weight of one hundred twenty-five pounds is secured via an Owner Furnished Contractor Installed swingout mount for flat-panel displays. The swingout mount has a maximum weight capacity of three hundred pounds with a maximum fixture weight of sixty pounds. Vertical mounting dimensions measure eighteen point four three inches and twenty-two point eight two inches.
18.43" 22.82" OFCI 86" WALL MOUNTED INTERACTIVE DISPLAY 77"x45.6"x3.9" (125 LBS MAX) OFCI SWINGOUT MOUNT FOR FLAT-PANEL DISPLAYS MAXIMUM WIEGHT CAPACITY 300LBS. (60 LBS MAX)
