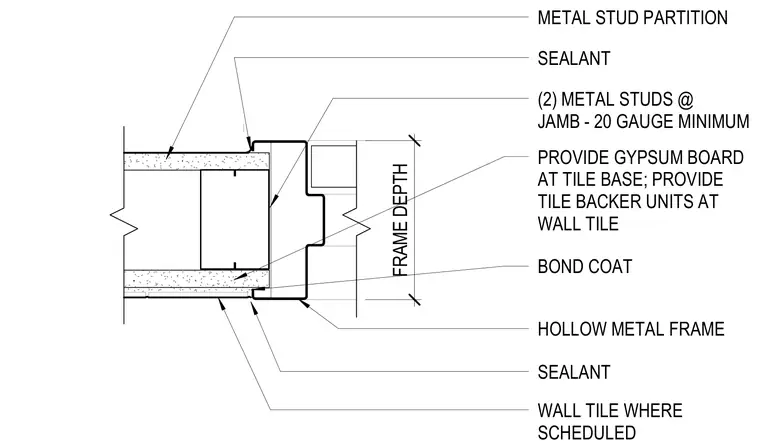

This hollow metal frame jamb detail connects a metal stud partition finished with wall tile over tile backer units and gypsum board. The jamb uses two twenty-gauge minimum metal studs to support the hollow metal frame assembly. A bond coat adheres the wall tile where scheduled, and sealant is applied at the frame interfaces. Gypsum board is provided at the tile base for backing.
SEALANT HOLLOW METAL FRAME METAL STUD PARTITION (2) METAL STUDS @ JAMB - 20 GAUGE MINIMUM FRAME DEPTH PROVIDE GYPSUM BOARD AT TILE BASE; PROVIDE TILE BACKER UNITS AT WALL TILE BOND COAT WALL TILE WHERE SCHEDULED SEALANT
