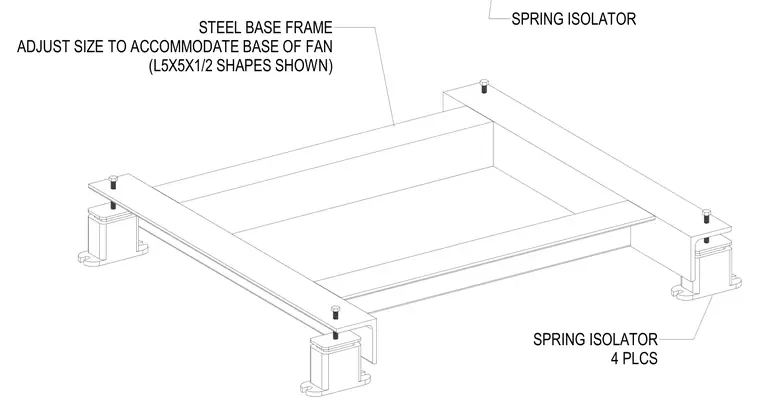

A structural steel base frame is constructed using L5x5x1/2 angle shapes sized to accommodate the base of a mechanical fan. Four spring isolators support the frame at each corner to mitigate vibration transmission. Fasteners secure the frame components directly to the isolators.
STEEL BASE FRAME ADJUST SIZE TO ACCOMMODATE BASE OF FAN (L5X5X1/2 SHAPES SHOWN) SPRING ISOLATOR 4 PLCS SPRING ISOLATOR
