K-Type Partition Top Detail at Structural Slab

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Walls Partitions Ceilings Floors / Slabs Decks Insulation Connections / Plates

About this detail

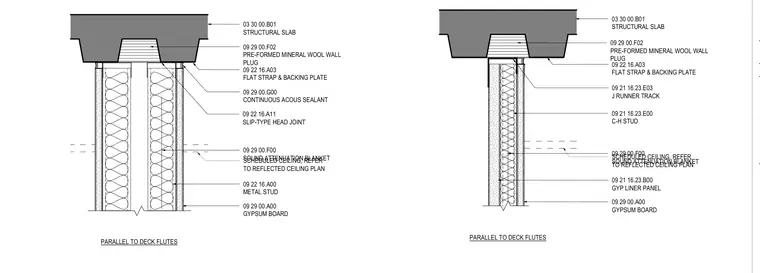

A partition wall framing assembly terminates beneath a structural concrete slab and metal deck running parallel to the deck flutes. The partition incorporates cold-formed metal studs, C-H studs, and gypsum liner panels flanked by sound attenuation blankets and gypsum board layers. A slip-type head joint is provided at the top track to accommodate structural deflection, supplemented by flat straps, backing plates, and a J-runner track. Pre-formed mineral wool wall plugs fill the deck flutes, and continuous acoustic sealant is applied at the joints for sound control.
