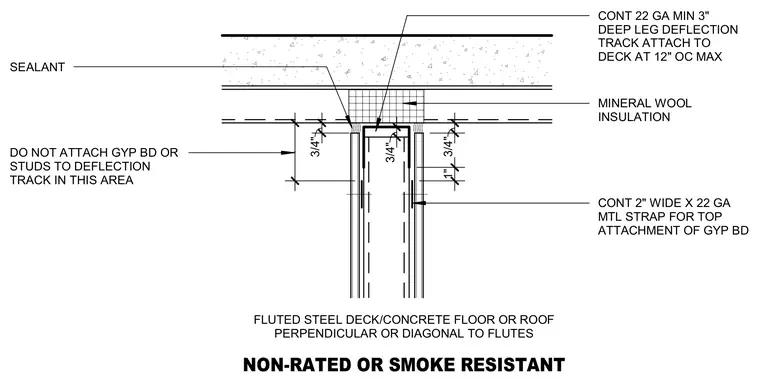

This non-rated smoke-resistant partition head detail connects a steel stud wall running perpendicular or diagonal to a fluted steel deck with a concrete floor or roof slab. The assembly utilizes a continuous twenty-two gauge minimum three-inch deep leg deflection track attached to the deck at twelve inches on center maximum. Mineral wool insulation and sealant fill the void at the deck flutes, and a continuous two-inch wide by twenty-two gauge metal strap provides top attachment for the gypsum board. Gypsum board and studs remain unattached to the deflection track in the specified zone to allow for structural movement.
NON-RATED OR SMOKE RESISTANT FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PERPENDICULAR OR DIAGONAL TO FLUTES CONT 2" WIDE X 22 GA MTL STRAP FOR TOP ATTACHMENT OF GYP BD CONT 22 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA SEALANT 1" 3/4" . 3/4" 3/4" MINERAL WOOL INSULATION
