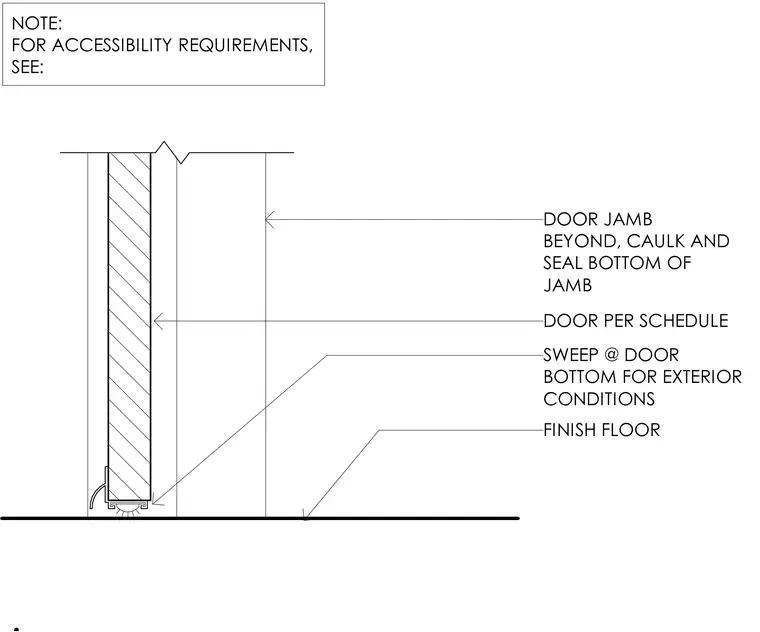

A door per schedule meets the finish floor with a bottom sweep installed for exterior conditions. The door jamb beyond is caulked and sealed at the bottom. A note directs attention to accessibility requirements.
DOOR JAMB BEYOND, CAULK AND SEAL BOTTOM OF JAMB DOOR PER SCHEDULE SWEEP @ DOOR BOTTOM FOR EXTERIOR CONDITIONS FINISH FLOOR NOTE: FOR ACCESSIBILITY REQUIREMENTS, SEE:
