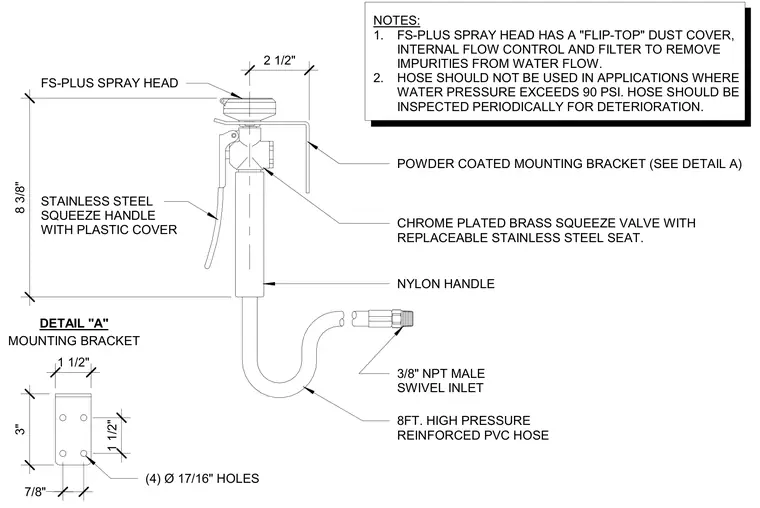

The assembly consists of an FS-plus spray head equipped with a flip-top dust cover, internal flow control, and filter, mounted to a chrome-plated brass squeeze valve with a replaceable stainless steel seat and a stainless steel squeeze handle with a plastic cover. The valve connects to an eight-foot high-pressure reinforced PVC hose with a three-eighths inch National Pipe Thread male swivel inlet and a nylon handle. The unit is supported by a powder-coated mounting bracket measuring three inches by one and one-half inches, featuring four seventeen-sixteenths inch diameter mounting holes spaced seven-eighths inch and one and one-half inches on center.
8 3/8" 2 1/2" 1 1/2" 3" 1 1/2" 7/8" DETAIL "A" MOUNTING BRACKET 8FT. HIGH PRESSURE REINFORCED PVC HOSE 3/8" NPT MALE SWIVEL INLET NYLON HANDLE CHROME PLATED BRASS SQUEEZE VALVE WITH REPLACEABLE STAINLESS STEEL SEAT. POWDER COATED MOUNTING BRACKET (SEE DETAIL A) FS-PLUS SPRAY HEAD STAINLESS STEEL SQUEEZE HANDLE WITH PLASTIC COVER (4) Ø 17/16" HOLES NOTES: 1. FS-PLUS SPRAY HEAD HAS A "FLIP-TOP" DUST COVER, INTERNAL FLOW CONTROL AND FILTER TO REMOVE IMPURITIES FROM WATER FLOW. 2. HOSE SHOULD NOT BE USED IN APPLICATIONS WHERE WATER PRESSURE EXCEEDS 90 PSI. HOSE SHOULD BE INSPECTED PERIODICALLY FOR DETERIORATION.
