Wheelchair accessible drinking fountain installation requires a maximum three and a half inch spout location dimensioned for parallel approach. The clear floor space aligns alongside the fountain fixture to accommodate wheelchair positioning. Spout placement is restricted to the front edge to ensure reach range compliance for users approaching from the side.

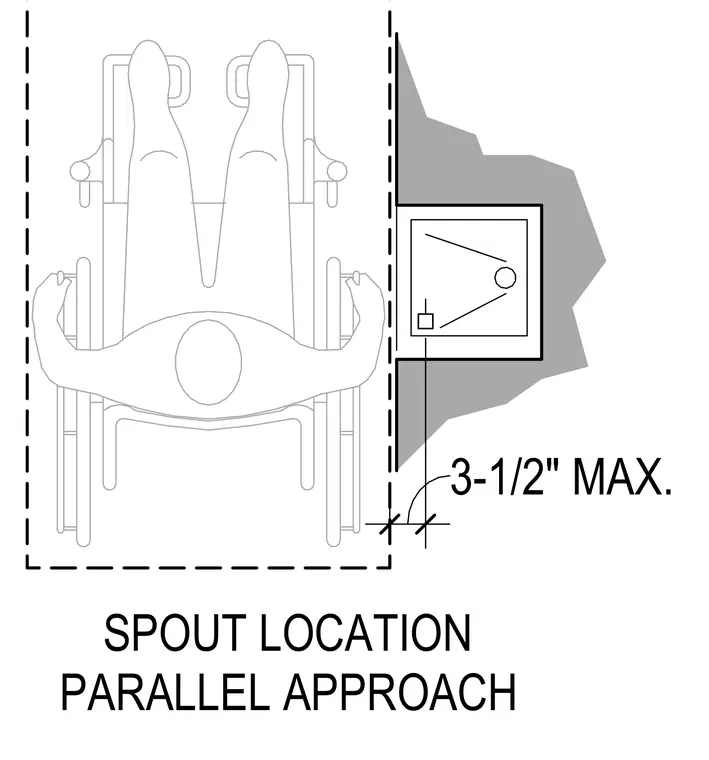

3-1/2" MAX. SPOUT LOCATION PARALLEL APPROACH
