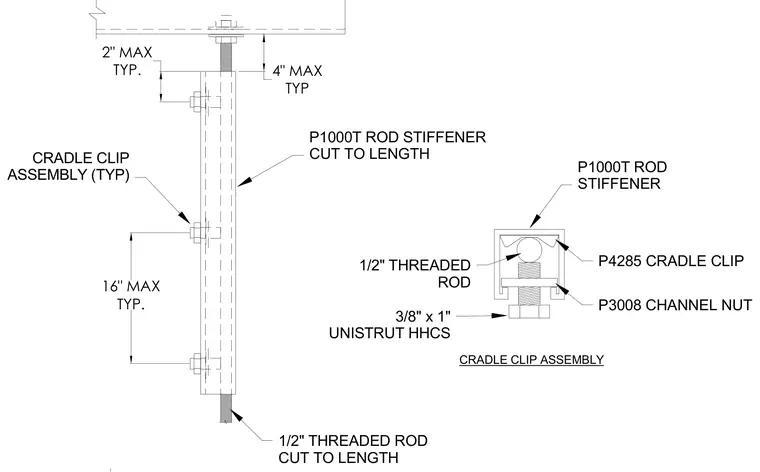

A typical rod stiffener assembly utilizes a P1000T rod stiffener cut to length over a half-inch threaded rod. The assembly is anchored using a cradle clip assembly consisting of a P4285 cradle clip, P3008 channel nut, and a three-eighths by one-inch Unistrut hex head cap screw. Maximum spacing dimensions of four inches at the top, two inches at the edge, and sixteen inches typically are maintained along the vertical run.
P1000T ROD STIFFENER CUT TO LENGTH 1/2" THREADED ROD CUT TO LENGTH CRADLE CLIP ASSEMBLY (TYP) P4285 CRADLE CLIP P3008 CHANNEL NUT 1/2" THREADED ROD P1000T ROD STIFFENER 3/8" x 1" UNISTRUT HHCS 4" MAX TYP CRADLE CLIP ASSEMBLY 16" MAX TYP. 2" MAX TYP.
