Architectural · A-EQK2A

Mobile Base Cabinet with Appliance and Trash Chute

Materials

Elements

Millwork / Casework Roof / Floor Openings

About this detail

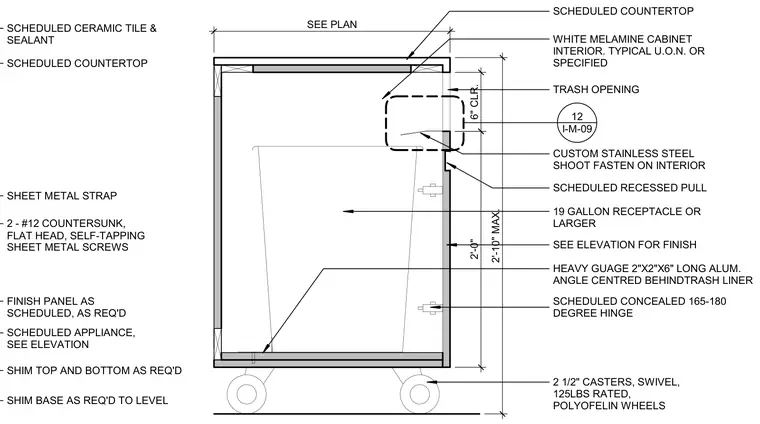

This mobile base cabinet features a white melamine interior and a scheduled countertop supported by a heavy-gauge aluminum angle centered behind the trash liner. The unit is mounted on two-and-a-half-inch swivel casters with polyolefin wheels rated for one hundred twenty-five pounds, shimmed at the base and top as required to level. A custom stainless steel trash shoot is fastened on the interior with sheet metal straps secured by number twelve countersunk flat head self-tapping sheet metal screws. Access is provided via a door equipped with a scheduled recessed pull and concealed one hundred sixty-five to one hundred eighty degree hinges, enclosing a nineteen gallon or larger waste receptacle.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
