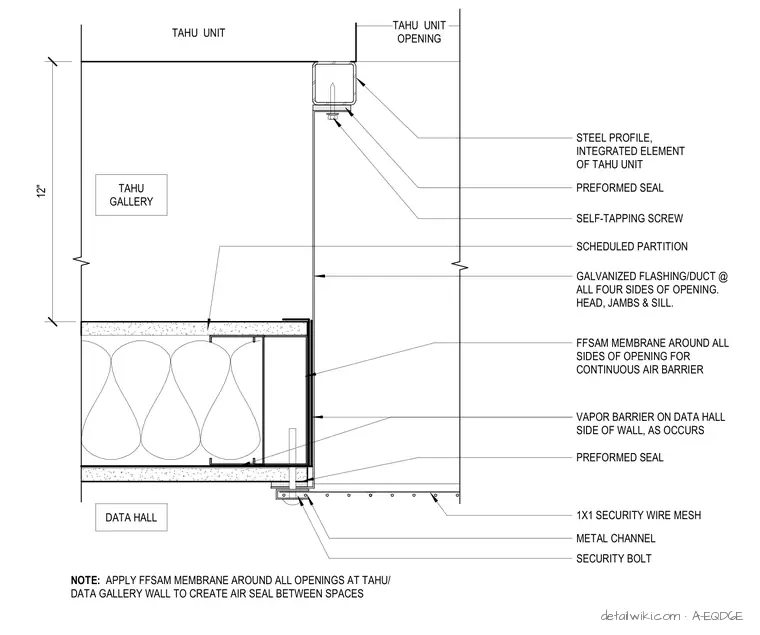

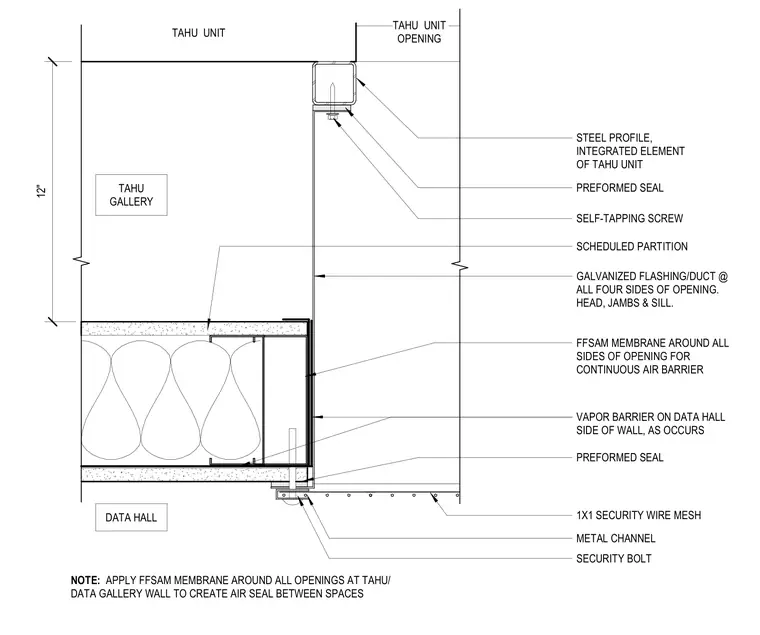

A steel profile integrates into the Tahu unit, secured with self-tapping screws and a preformed seal. A galvanized flashing duct wraps all four sides of the opening, including the head, jambs, and sill. A one-by-one security wire mesh attaches to the scheduled partition using a metal channel and security bolts. An FFSAM membrane applies around all sides of the opening to establish a continuous air barrier between the Tahu gallery and the data hall. A vapor barrier installs on the data hall side of the wall as required.
Text on the drawing
DATA HALL TAHU GALLERY 12" TAHU UNIT TAHU UNIT OPENING 1X1 SECURITY WIRE MESH GALVANIZED FLASHING/DUCT @ ALL FOUR SIDES OF OPENING. HEAD, JAMBS & SILL. SCHEDULED PARTITION SECURITY BOLT PREFORMED SEAL PREFORMED SEAL METAL CHANNEL STEEL PROFILE, INTEGRATED ELEMENT OF TAHU UNIT SELF-TAPPING SCREW VAPOR BARRIER ON DATA HALL SIDE OF WALL, AS OCCURS NOTE: APPLY FFSAM MEMBRANE AROUND ALL OPENINGS AT TAHU/ DATA GALLERY WALL TO CREATE AIR SEAL BETWEEN SPACES FFSAM MEMBRANE AROUND ALL SIDES OF OPENING FOR CONTINUOUS AIR BARRIER
