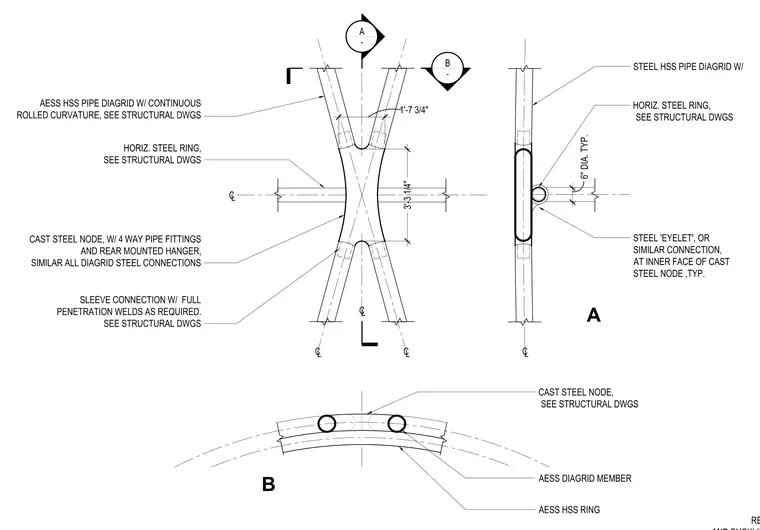

A cast steel node with four-way pipe fittings and a rear-mounted hanger connects to architectural exposed structural steel hollow structural section pipe diagrid members with continuous rolled curvature. Sleeve connections with full penetration welds are specified per structural drawings. A horizontal steel ring connects to the assembly using a steel eyelet or similar connection at the inner face of the cast steel node typical.
