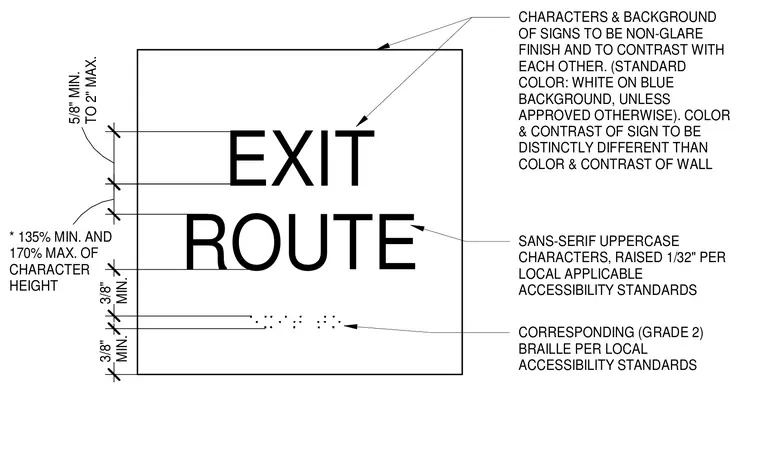

Tactile exit route sign featuring uppercase sans-serif characters raised one-thirty-second of an inch and corresponding Grade 2 braille. Characters and sign background have a non-glare finish with contrasting colors that must be distinct from the supporting wall. Standard coloring is white text on a blue background unless otherwise approved. Dimensions specify character heights between one hundred thirty-five and one hundred seventy percent of standard height, with three-eighths inch minimum spacing and five-eighths inch to two inch margins.
EXIT ROUTE * 135% MIN. AND 170% MAX. OF CHARACTER HEIGHT CORRESPONDING (GRADE 2) BRAILLE PER LOCAL ACCESSIBILITY STANDARDS SANS-SERIF UPPERCASE CHARACTERS, RAISED 1/32" PER LOCAL APPLICABLE ACCESSIBILITY STANDARDS CHARACTERS & BACKGROUND OF SIGNS TO BE NON-GLARE FINISH AND TO CONTRAST WITH EACH OTHER. (STANDARD COLOR: WHITE ON BLUE BACKGROUND, UNLESS APPROVED OTHERWISE). COLOR & CONTRAST OF SIGN TO BE DISTINCTLY DIFFERENT THAN COLOR & CONTRAST OF WALL 3/8" MIN. 3/8" MIN. 5/8" MIN. TO 2" MAX.
