Architectural · A-EPTB4

Cafe Service Counter Top and Sneeze Guard Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood Stone Glass / Glazing Metal (misc.)Gypsum / Drywall Composite

Elements

Walls Floors / Slabs Millwork / Casework Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Embed Plate

About this detail

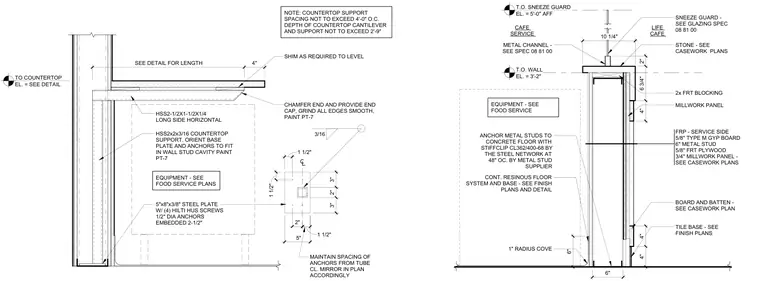

A cafe service counter is supported by an HSS 2x2x3/16 countertop support welded to a 5"x8"x3/8" steel plate anchored into the wall stud cavity with four 1/2" diameter Hilti HUS screws embedded 2-1/2". An HSS 2-1/2x1-1/2x1/4 tube with the long side horizontal provides the cantilevered countertop framing, which features chamfered ends, end caps, and a paint finish designated as PT-7. Shims are provided as required to level the equipment. The adjacent knee wall is framed with 6" metal studs anchored to the concrete floor using Stiffclip CL362/400-68 clips at 48" on center. The service side features fiberglass reinforced plastic, 5/8" type M gypsum board, and 5/8" fire-retardant plywood, while the customer side incorporates 3/4" millwork panels, board and batten, and a tile base over a continuous resinous floor system with a 1" radius cove. A glass sneeze guard is mounted on top of the 3'-2" high wall using a metal channel, reaching a total height of 5'-0" above the finished floor.
