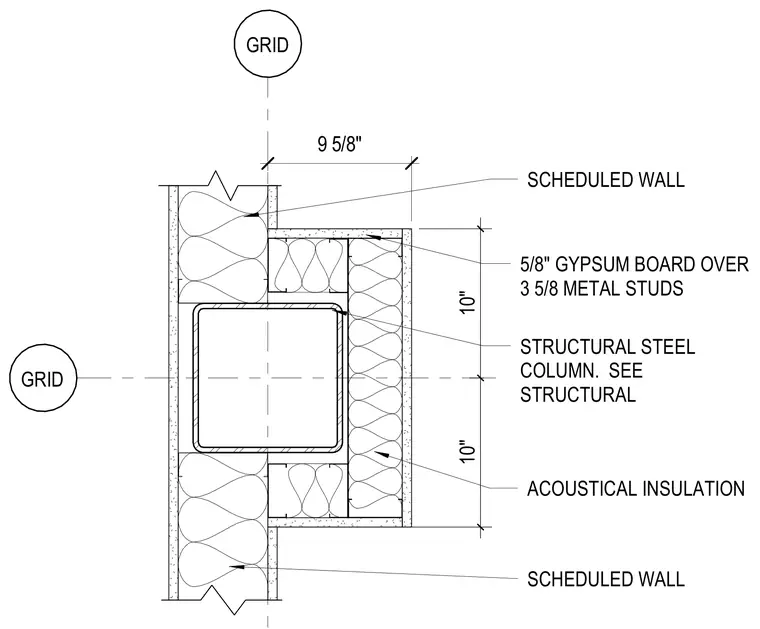

A structural steel column is enclosed by a gypsum board finish over three-and-five-eighths-inch metal studs, with acoustical insulation placed within the cavity. The surrounding wall partitions connect to the column assembly, aligned with the building grid.
10" 10" 5/8" GYPSUM BOARD OVER 3 5/8 METAL STUDS STRUCTURAL STEEL COLUMN. SEE STRUCTURAL SCHEDULED WALL SCHEDULED WALL ACOUSTICAL INSULATION 9 5/8" GRID GRID
