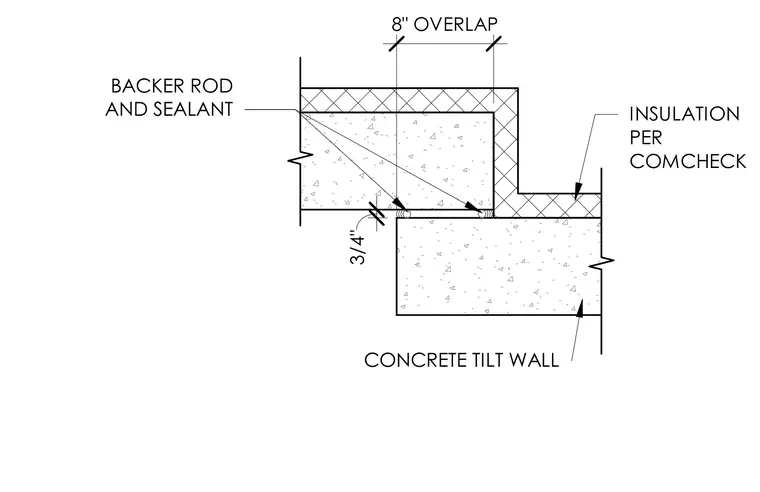

Adjacent concrete tilt-up wall panels form an offset joint with a three-quarter-inch offset dimension. Insulation is installed per COMCHECK with an eight-inch overlap at the panel transition. A backer rod and sealant are applied at the exterior joint interface to maintain weather tightness.
INSULATION PER COMCHECK CONCRETE TILT WALL BACKER ROD AND SEALANT 3/4" 8" OVERLAP XXXXX 4 7
