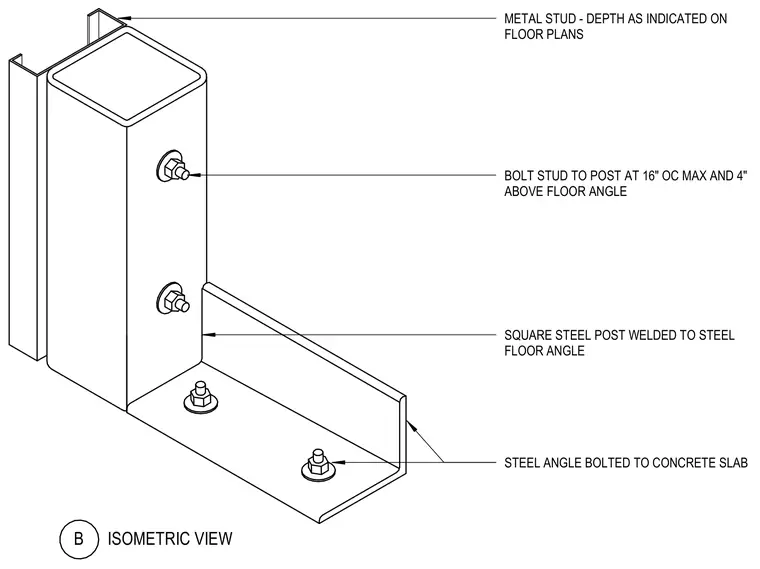

A square steel post is welded to a steel floor angle, which is bolted down to the concrete slab. Bolt studs secure a metal stud to the post at a maximum spacing of sixteen inches on center and four inches above the floor angle. The depth of the metal stud is sized per the floor plans.
STEEL ANGLE BOLTED TO CONCRETE SLAB SQUARE STEEL POST WELDED TO STEEL FLOOR ANGLE BOLT STUD TO POST AT 16" OC MAX AND 4" ABOVE FLOOR ANGLE METAL STUD - DEPTH AS INDICATED ON FLOOR PLANS ISOMETRIC VIEW B
