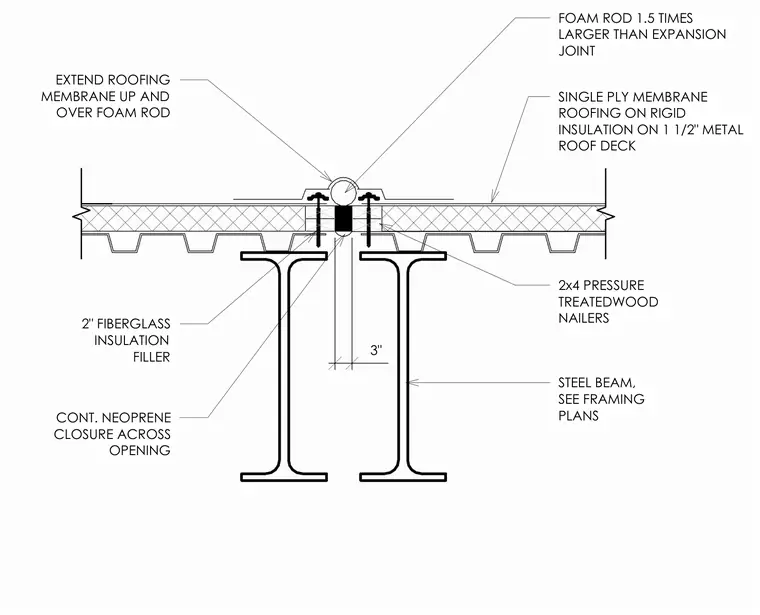

An expansion joint bridges the gap between two structural steel beams supporting a roof deck. The assembly consists of a one-and-one-half-inch metal roof deck topped with rigid insulation and a single-ply membrane roofing system. Two-by-four pressure-treated wood nailers flank the three-inch open joint, which is filled with a two-inch fiberglass insulation filler and sealed with a continuous neoprene closure across the opening. A three-inch foam rod, sized one-and-a-half times larger than the expansion joint, sits within the profile while the roofing membrane extends up and over the foam rod to maintain weather tightness.
3" FOAM ROD 1.5 TIMES LARGER THAN EXPANSION JOINT SINGLE PLY MEMBRANE ROOFING ON RIGID INSULATION ON 1 1/2" METAL ROOF DECK EXTEND ROOFING MEMBRANE UP AND OVER FOAM ROD 2x4 PRESSURE TREATEDWOOD NAILERS 2" FIBERGLASS INSULATION FILLER CONT. NEOPRENE CLOSURE ACROSS OPENING STEEL BEAM, SEE FRAMING PLANS
