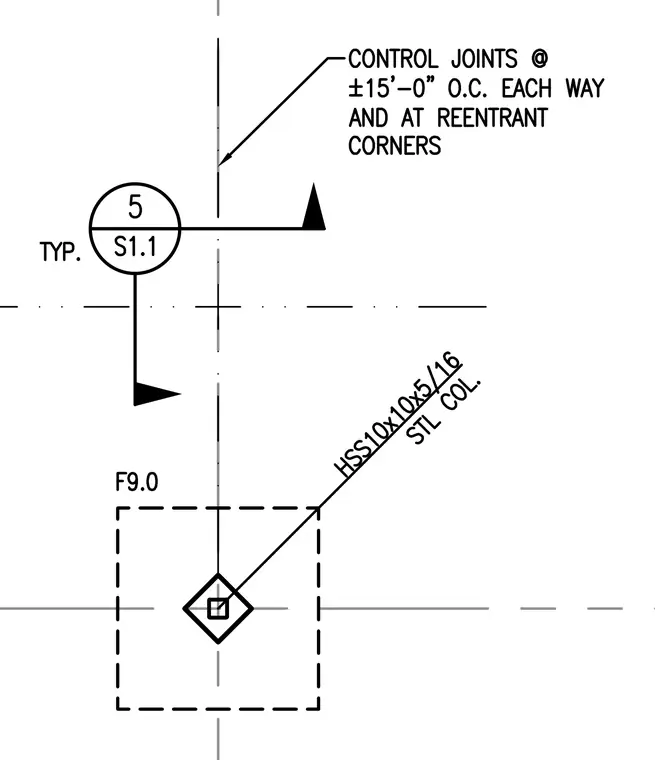

A hollow structural section steel column designated as HSS10x10x5/16 is centered on intersecting column grid lines. Control joints are specified at plus or minus 15 feet 0 inches on center each way and at reentrant corners. A detail reference bubble directs to detail 5 on sheet S1.1, marked as typical.
