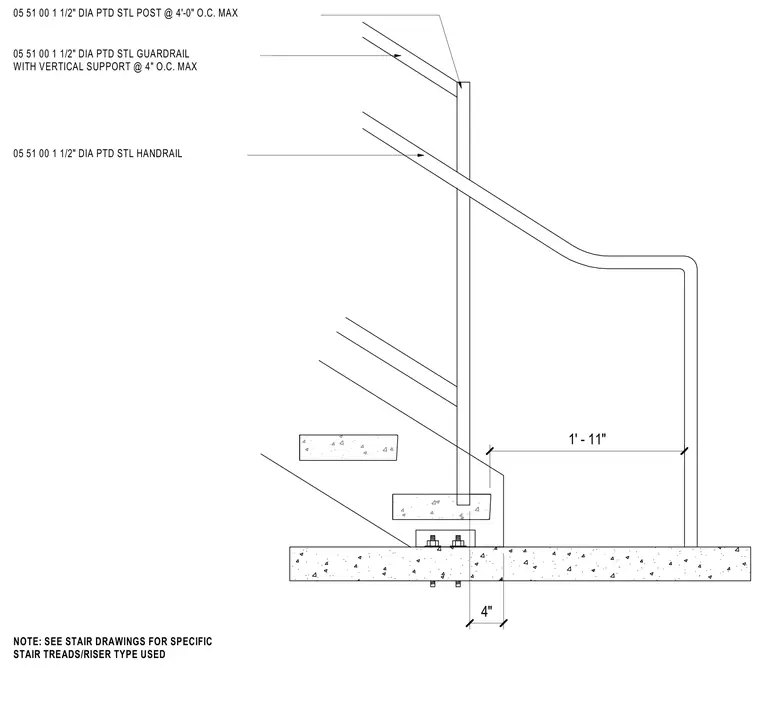

One-and-a-half-inch diameter painted steel posts are spaced at a maximum of four feet on center. A one-and-a-half-inch diameter painted steel handrail and a one-and-a-half-inch diameter painted steel guardrail feature vertical supports spaced at a maximum of four inches on center. The assembly anchors to the concrete landing and stair base. Specific stair treads and riser types are determined per the main stair drawings.
05 51 00 1 1/2" DIA PTD STL POST @ 4'-0" O.C. MAX 05 51 00 1 1/2" DIA PTD STL HANDRAIL 05 51 00 1 1/2" DIA PTD STL GUARDRAIL WITH VERTICAL SUPPORT @ 4" O.C. MAX 1' - 11" 4" NOTE: SEE STAIR DRAWINGS FOR SPECIFIC STAIR TREADS/RISER TYPE USED
