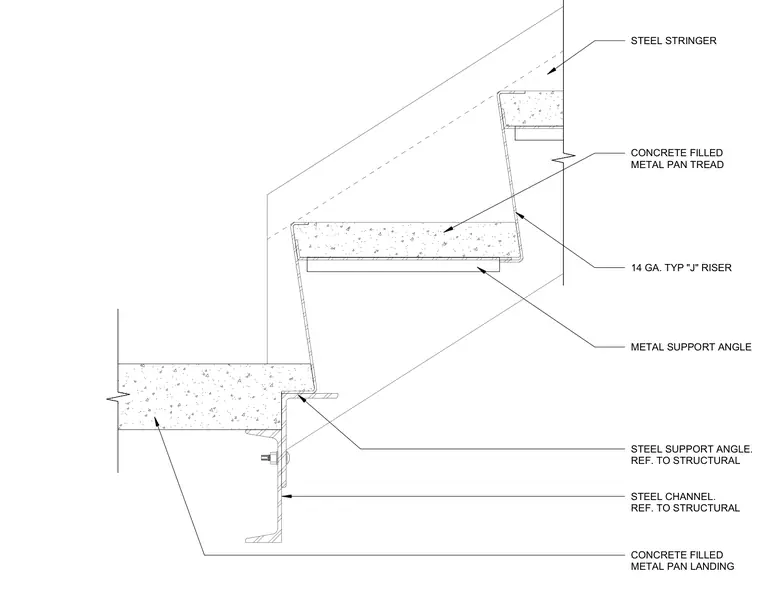

A steel stringer frames down to a concrete-filled metal pan landing supported by a steel channel. A fourteen-gauge typical J-riser and concrete-filled metal pan tread tie into a metal support angle. The stair landing incorporates a steel support angle referenced to structural drawings.
CONCRETE FILLED METAL PAN TREAD STEEL CHANNEL. REF. TO STRUCTURAL CONCRETE FILLED METAL PAN LANDING STEEL SUPPORT ANGLE. REF. TO STRUCTURAL STEEL STRINGER 14 GA. TYP "J" RISER METAL SUPPORT ANGLE
