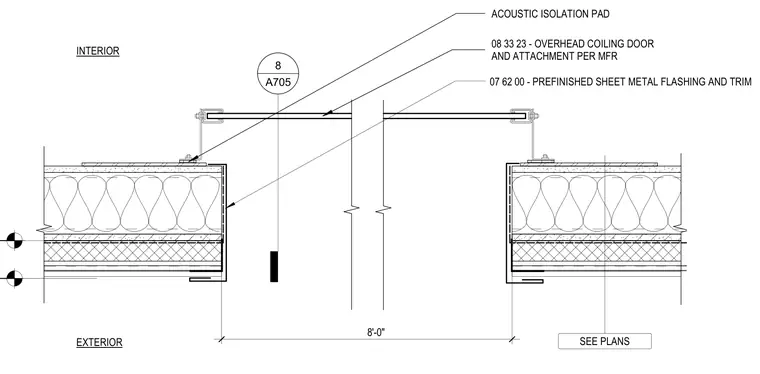

An overhead coiling door jamb transition is detailed with an acoustic isolation pad and prefinished sheet metal flashing and trim. The door attachment is installed per the manufacturer recommendations spanning an eight-foot opening between interior and exterior partition walls.
SEE PLANS 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM ACOUSTIC ISOLATION PAD 8 A705 EXTERIOR INTERIOR 08 33 23 - OVERHEAD COILING DOOR AND ATTACHMENT PER MFR 8'-0"
