Architectural · A-ENJPD

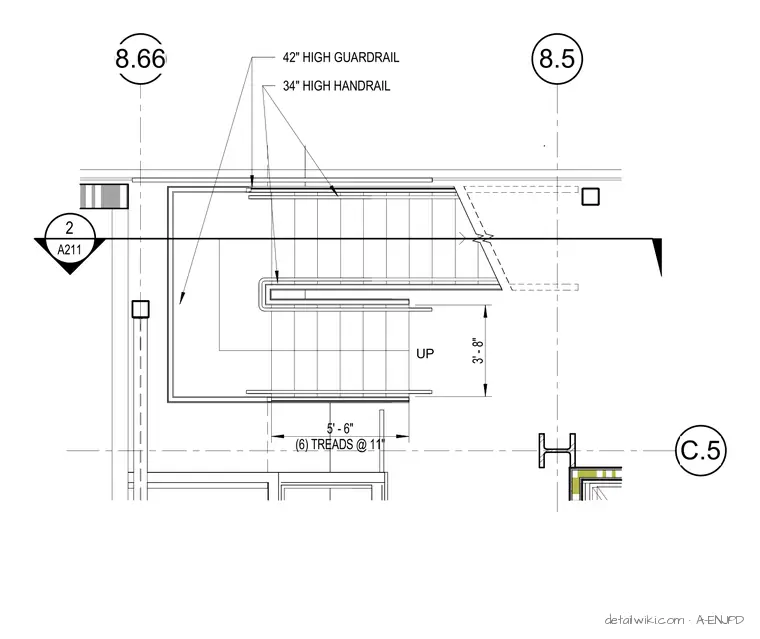

Mezzanine Stair - Type B

Scale: SCALE: 1/4" = 1'-0"
Units: imperial
Sheet: A211
Discipline: Architectural

Elements

Railings / Guards Stairs

Text on the drawing

UP C.5 8.66 2 A211 8.5 42" HIGH GUARDRAIL 34" HIGH HANDRAIL (6) TREADS @ 11" 5' - 6" 3' - 8"
