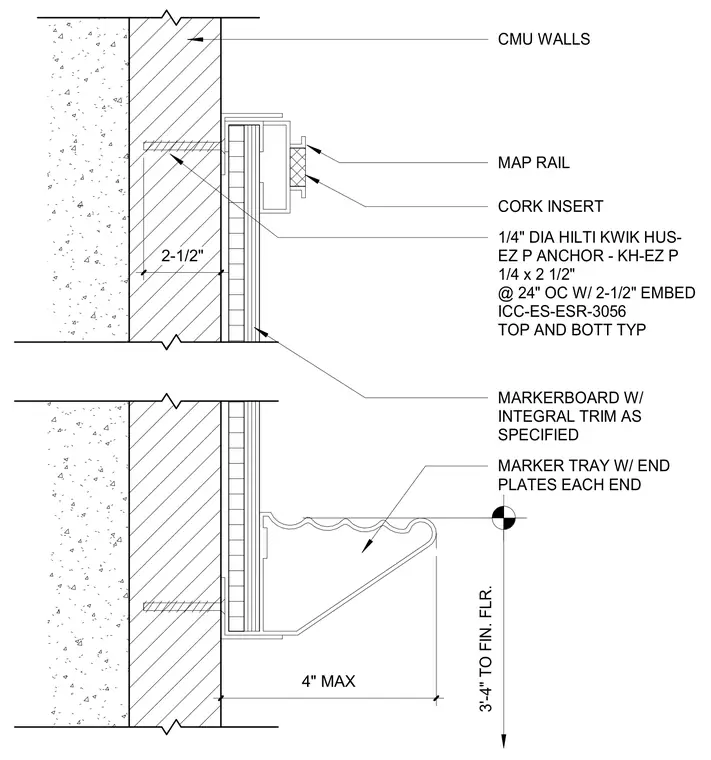

A markerboard with integral trim is mounted to a concrete masonry unit wall using one-quarter-inch-diameter by two-and-a-half-inch-long Hilti Kwik Hus-EZ concrete screws spaced at twenty-four inches on center with two-and-a-half-inch embedment. A map rail with a cork insert is secured at the top of the assembly. A marker tray with end plates is positioned at the bottom, set to a height of three feet four inches to the finished floor with a maximum four-inch projection.
CMU WALLS MAP RAIL CORK INSERT 1/4" DIA HILTI KWIK HUS- EZ P ANCHOR - KH-EZ P 1/4 x 2 1/2" @ 24" OC W/ 2-1/2" EMBED ICC-ES-ESR-3056 TOP AND BOTT TYP MARKERBOARD W/ INTEGRAL TRIM AS SPECIFIED MARKER TRAY W/ END PLATES EACH END 3'-4" TO FIN. FLR. 2-1/2" 4" MAX
