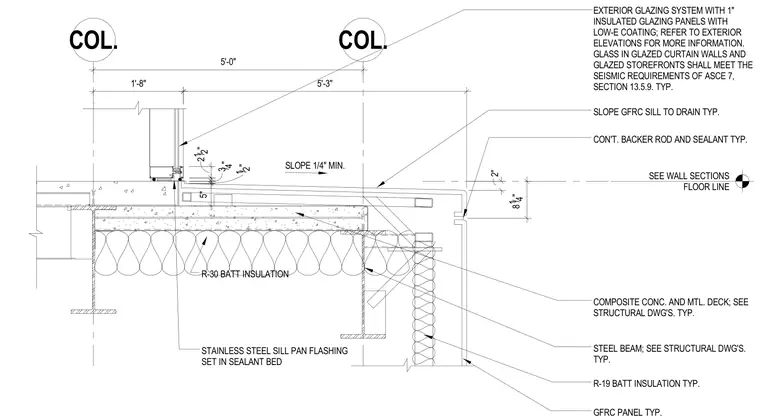

This wall section details the exterior glazing system transition at a glass fiber reinforced concrete sill ledge supported by a structural steel beam and composite concrete and metal deck floor slab. A stainless steel sill pan flashing is set in a continuous sealant bed beneath the glazing assembly, complete with continuous backer rod and joint sealant. The precast glass fiber reinforced concrete sill slopes toward the exterior with a minimum one-quarter inch slope for positive drainage. R-30 batt insulation is installed beneath the floor deck, and R-19 batt insulation is placed within the exterior wall cavity behind the glass fiber reinforced concrete panel.
81/4" 21/2" 3/4" 1/2" 2" 5" 5'-0" 1'-8" 5'-3" COL. COL. SEE WALL SECTIONS FLOOR LINE EXTERIOR GLAZING SYSTEM WITH 1" INSULATED GLAZING PANELS WITH LOW-E COATING; REFER TO EXTERIOR ELEVATIONS FOR MORE INFORMATION. GLASS IN GLAZED CURTAIN WALLS AND GLAZED STOREFRONTS SHALL MEET THE SEISMIC REQUIREMENTS OF ASCE 7, SECTION 13.5.9. TYP. CON'T. BACKER ROD AND SEALANT TYP. R-19 BATT INSULATION TYP. STEEL BEAM; SEE STRUCTURAL DWG'S. TYP. SLOPE GFRC SILL TO DRAIN TYP. SLOPE 1/4" MIN. COMPOSITE CONC. AND MTL. DECK; SEE STRUCTURAL DWG'S. TYP. GFRC PANEL TYP. STAINLESS STEEL SILL PAN FLASHING SET IN SEALANT BED R-30 BATT INSULATION
