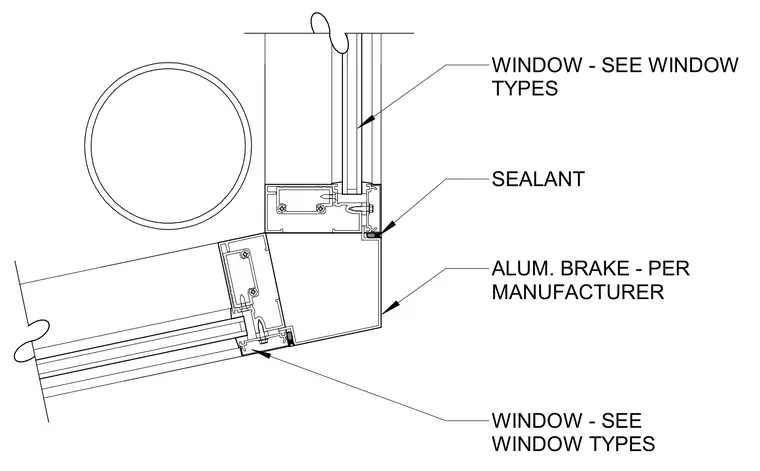

This plan detail shows a window jamb assembly at a stone building corner, integrating a window unit per window types with an aluminum brake metal shaped per the manufacturer. A perimeter sealant bead seals the exterior joint between the window frame and the brake metal.
ALUM. BRAKE - PER MANUFACTURER SEALANT WINDOW - SEE WINDOW TYPES WINDOW - SEE WINDOW TYPES
