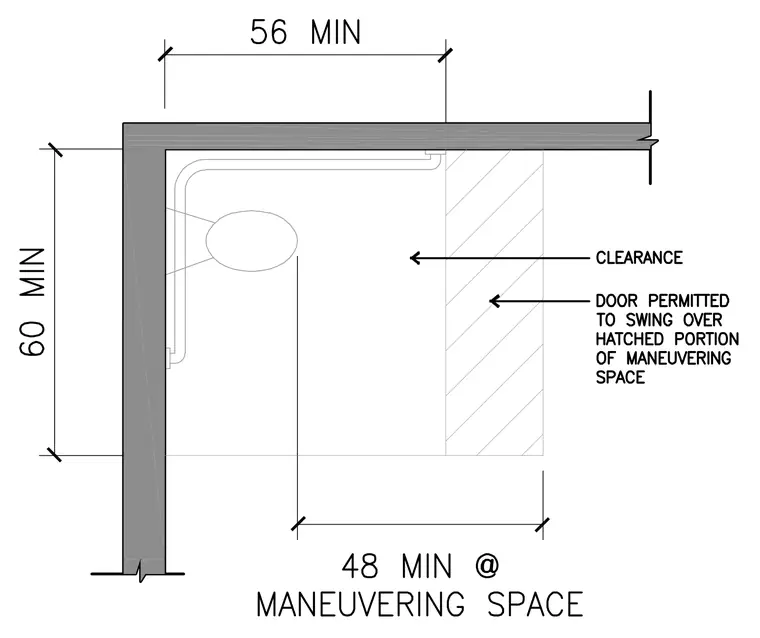

An accessible water closet layout plan showing required clear floor space with a minimum dimension of 56 inches by 60 inches. A clearance zone is designated adjacent to the fixture, permitting a door swing over the hatched portion of the maneuvering space. Dimensions indicate 56 minimum width, 60 minimum length, and 48 minimum at the maneuvering space.
