The door frame assembly is positioned three inches above the finished opening when the vertical dimension above the door head is one foot or greater. This spacing rule applies to standard frame installations to maintain proper clearance and alignment tolerances.

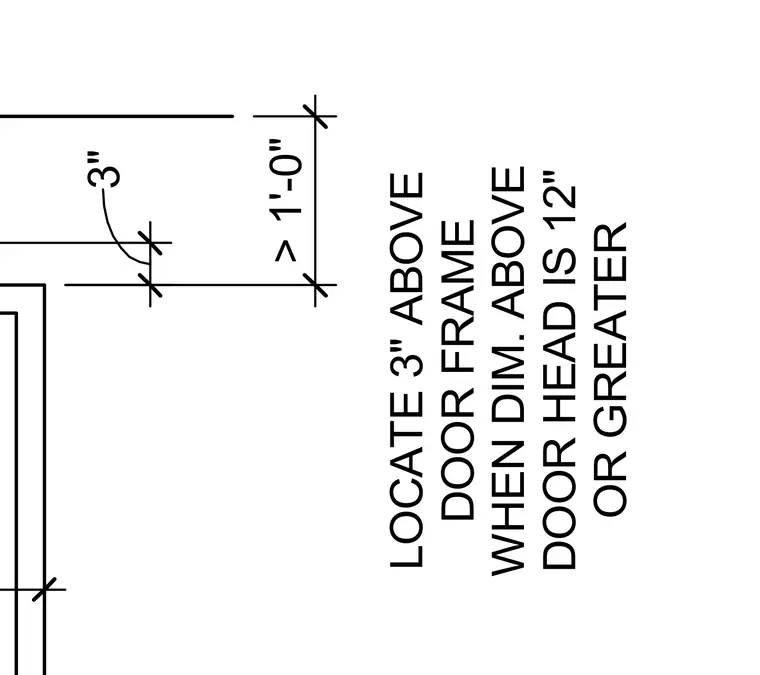

LOCATE 3" ABOVE DOOR FRAME WHEN DIM. ABOVE DOOR HEAD IS 12" OR GREATER 3" > 1'-0"
