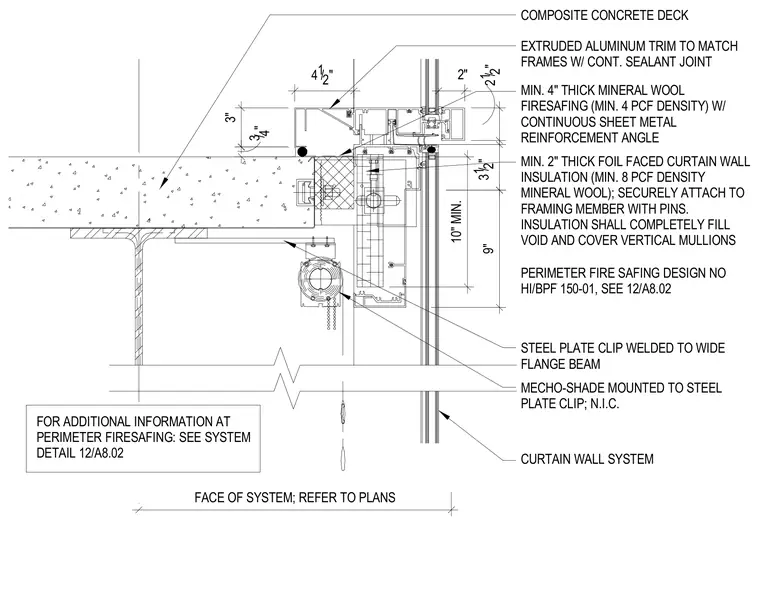

A curtainwall sill intersects a composite concrete deck bearing on a wide-flange steel beam. The aluminum curtain wall system is anchored via steel plate clips welded to the structural steel beam. A continuous perimeter fire safing assembly consists of a minimum four-inch thick mineral wool fire safing with a minimum four pounds per cubic foot density, backed by a continuous sheet metal reinforcement angle per design number HI/BPF 150-01. Additionally, a minimum two-inch thick foil-faced curtain wall insulation with a minimum eight pounds per cubic foot density completely fills the void and covers the vertical mullions, secured to the framing member with pins. An extruded aluminum trim matches the framing with a continuous sealant joint. A motorized Mecho-Shade is mounted to a steel plate clip on the framing, provided not in contract.
FACE OF SYSTEM; REFER TO PLANS 2" 4 1 /2" 3/4" 3" 21/2" 10" MIN. 9" 31/2" CURTAIN WALL SYSTEM COMPOSITE CONCRETE DECK STEEL PLATE CLIP WELDED TO WIDE FLANGE BEAM MECHO-SHADE MOUNTED TO STEEL PLATE CLIP; N.I.C. EXTRUDED ALUMINUM TRIM TO MATCH FRAMES W/ CONT. SEALANT JOINT PERIMETER FIRE SAFING DESIGN NO HI/BPF 150-01, SEE 12/A8.02 FOR ADDITIONAL INFORMATION AT PERIMETER FIRESAFING: SEE SYSTEM DETAIL 12/A8.02 MIN. 4" THICK MINERAL WOOL FIRESAFING (MIN. 4 PCF DENSITY) W/ CONTINUOUS SHEET METAL REINFORCEMENT ANGLE MIN. 2" THICK FOIL FACED CURTAIN WALL INSULATION (MIN. 8 PCF DENSITY MINERAL WOOL); SECURELY ATTACH TO FRAMING MEMBER WITH PINS. INSULATION SHALL COMPLETELY FILL VOID AND COVER VERTICAL MULLIONS
