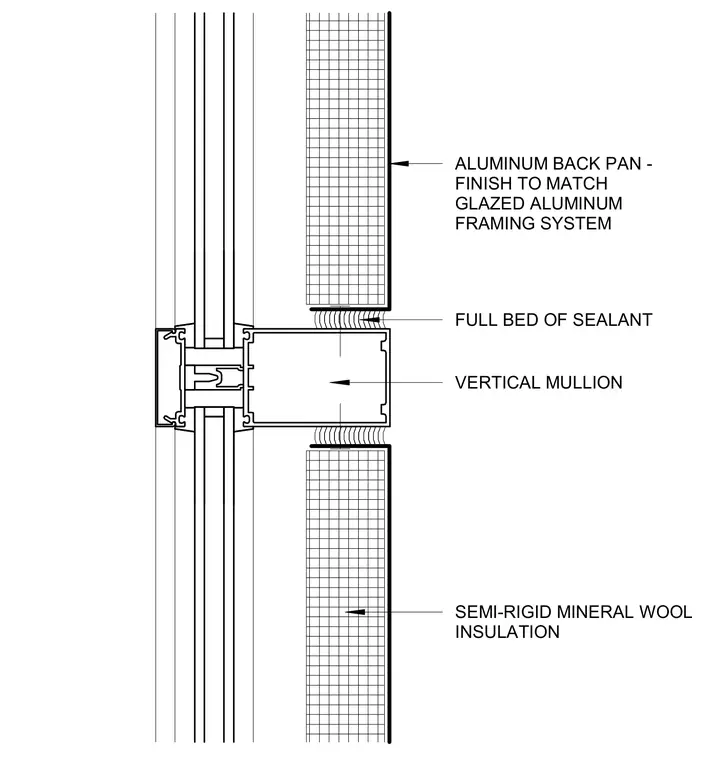

An aluminum back pan with a finish matching the glazed aluminum framing system attaches adjacent to a vertical mullion. A full bed of sealant seals the joint between the back pan and the framing member. Semi-rigid mineral wool insulation fills the cavity behind the back pan assembly.
SEMI-RIGID MINERAL WOOL INSULATION VERTICAL MULLION FULL BED OF SEALANT ALUMINUM BACK PAN - FINISH TO MATCH GLAZED ALUMINUM FRAMING SYSTEM
