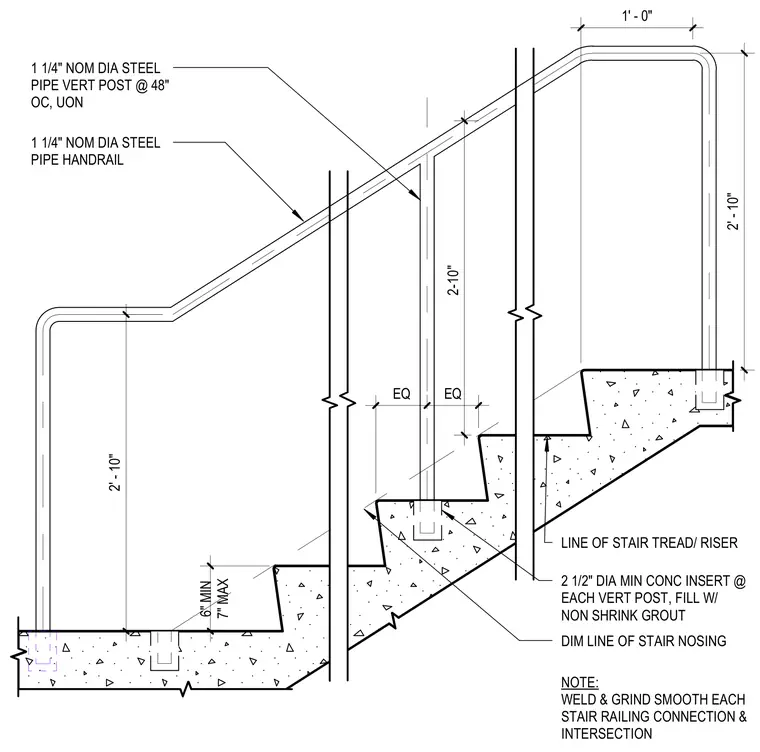

A 1 1/4-inch nominal diameter steel pipe handrail runs parallel to the stair slope, supported by 1 1/4-inch nominal diameter steel pipe vertical posts spaced at forty-eight inches on center unless otherwise noted. Each vertical post anchors into a 2 1/2-inch diameter minimum concrete insert embedded in the concrete stair treads and risers, filled with non-shrink grout. All stair railing connections and intersections are welded and ground smooth.
DIM LINE OF STAIR NOSING LINE OF STAIR TREAD/ RISER 2 1/2" DIA MIN CONC INSERT @ EACH VERT POST, FILL W/ NON SHRINK GROUT NOTE: WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION EQ EQ 6" MIN 7" MAX 1 1/4" NOM DIA STEEL PIPE HANDRAIL 1 1/4" NOM DIA STEEL PIPE VERT POST @ 48" OC, UON 1' - 0" 2' - 10" 2' - 10" 2-10"
