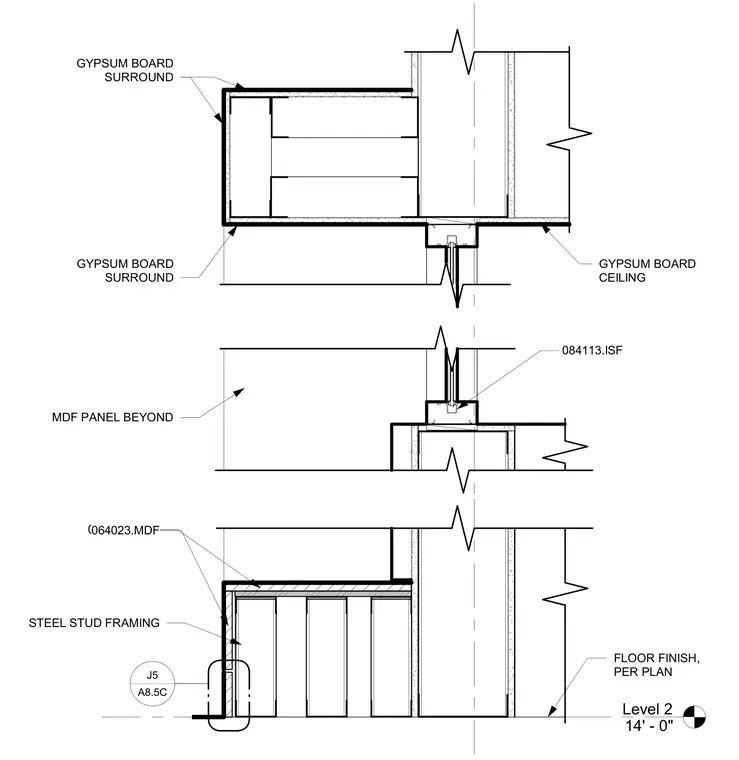

This vertical section details an acoustical wall panel assembly integrated with steel stud framing and gypsum board surrounds. Medium density fiberboard panels are mounted beyond the framing system. Gypsum board ceilings and surrounds finish the interior surfaces at Level 2.
Level 2 14' - 0" GYPSUM BOARD CEILING GYPSUM BOARD SURROUND FLOOR FINISH, PER PLAN GYPSUM BOARD SURROUND STEEL STUD FRAMING 064023.MDF 064023.MDF MDF PANEL BEYOND 084113.ISF ________________________________________________ A8.5C J5
