Architectural · A-EKFPM

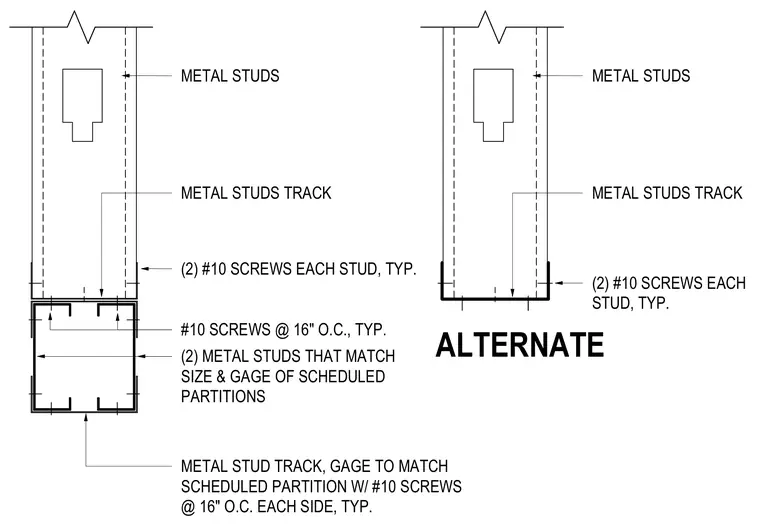

Typical Door Head Framing Detail at Metal Stud Partition

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

About this detail

Metal stud partition framing at a door head consists of vertical metal studs terminating into a metal stud track, secured with two number ten screws at each stud. The header is constructed using two metal studs matching the size and gauge of the scheduled partitions, capped with a metal stud track of matching gauge and fastened with number ten screws at sixteen inches on center on each side. An alternate configuration uses a single continuous track profile with standard screw fastening.
