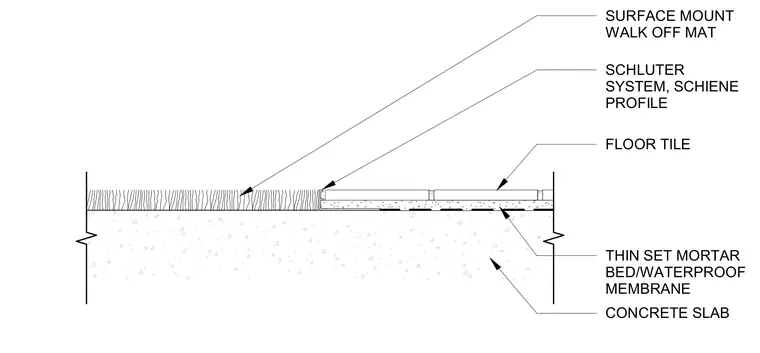

A surface-mounted walk-off mat transitions to adjacent floor tile over a concrete slab. The Schluter system uses a Schiene profile to edge the tile assembly, which is set in a thin-set mortar bed over a waterproof membrane.
SURFACE MOUNT WALK OFF MAT SCHLUTER SYSTEM, SCHIENE PROFILE FLOOR TILE THIN SET MORTAR BED/WATERPROOF MEMBRANE CONCRETE SLAB
