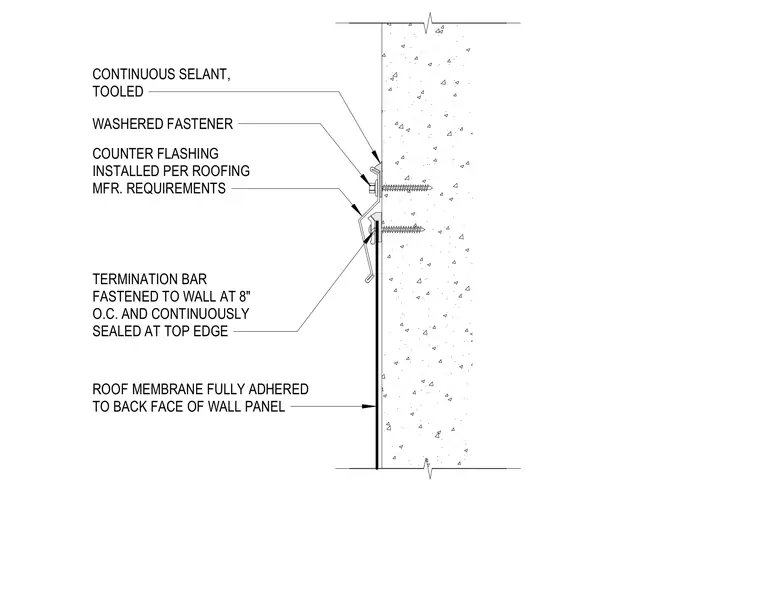

The roof membrane is fully adhered to the back face of the wall panel. A termination bar is fastened to the wall at eight inches on center, with the top edge continuously sealed. Counter flashing is installed over the termination bar per the roofing manufacturer's requirements, secured with a washered fastener and finished with continuous, tooled sealant.
Text on the drawing
TERMINATION BAR FASTENED TO WALL AT 8" O.C. AND CONTINUOUSLY SEALED AT TOP EDGE ROOF MEMBRANE FULLY ADHERED TO BACK FACE OF WALL PANEL COUNTER FLASHING INSTALLED PER ROOFING MFR. REQUIREMENTS CONTINUOUS SELANT, TOOLED WASHERED FASTENER
