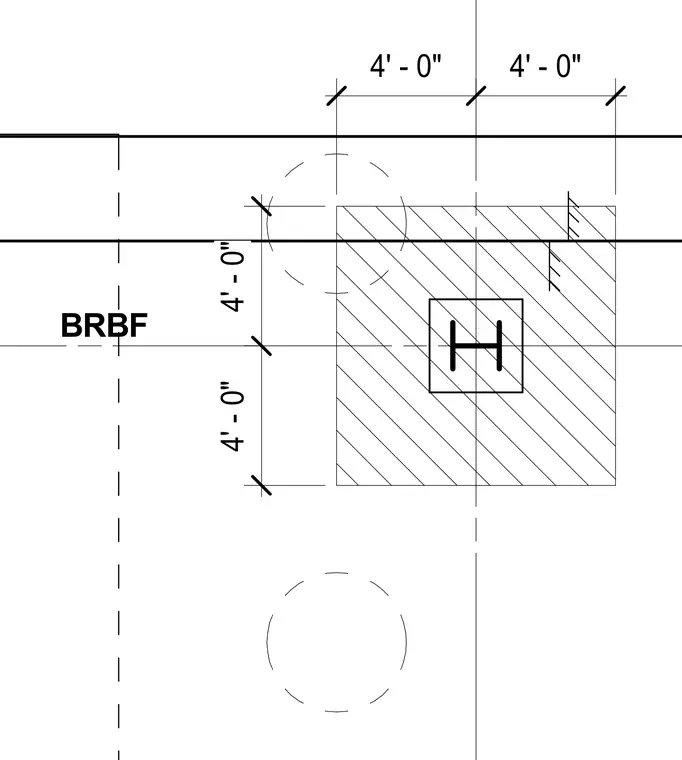

A structural steel wide-flange column is centered on grid lines within a hatched gusset or base plate zone. Dimension strings of four feet span across orthogonal axes to locate the member relative to adjacent framing. Centerlines intersect at the column centroid, establishing coordinate positions for the buckling-restrained braced frame.
