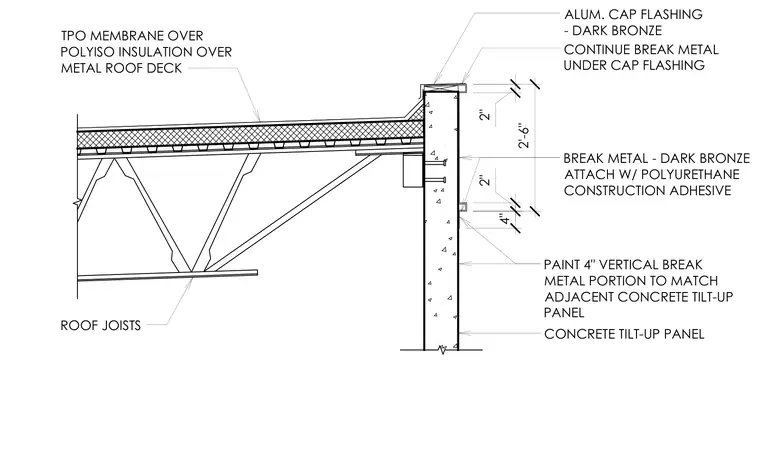

A dark bronze aluminum cap flashing sits atop a concrete tilt-up wall panel, with break metal continuing underneath the cap flashing. The roof assembly consists of a TPO membrane over polyiso insulation supported by a metal roof deck and open-web roof joists. Dark bronze break metal is attached to the exterior face of the concrete panel using polyurethane construction adhesive. A four-inch vertical break metal portion is painted to match the adjacent concrete tilt-up panel.
2" 2'-6" CONCRETE TILT-UP PANEL ALUM. CAP FLASHING - DARK BRONZE TPO MEMBRANE OVER POLYISO INSULATION OVER METAL ROOF DECK ROOF JOISTS 2" 4" PAINT 4" VERTICAL BREAK METAL PORTION TO MATCH ADJACENT CONCRETE TILT-UP PANEL BREAK METAL - DARK BRONZE ATTACH W/ POLYURETHANE CONSTRUCTION ADHESIVE CONTINUE BREAK METAL UNDER CAP FLASHING
