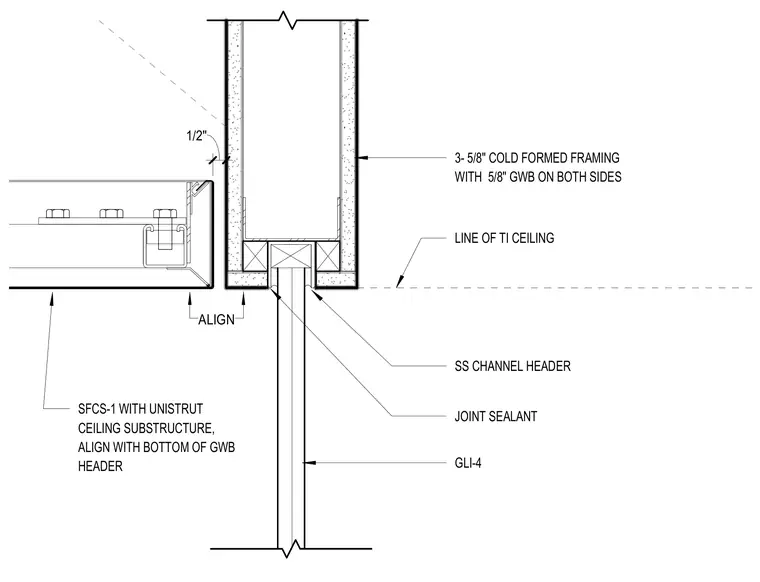

An interior glass wall terminates at a gypsum board header framed with three-and-five-eighths-inch cold-formed metal framing and five-eighths-inch gypsum wallboard on both sides. A stainless steel channel header receives the glass partition, sealed with a half-inch joint sealant. The tenant improvement ceiling substructure aligns with the bottom of the gypsum wallboard header.
ALIGN G L I - 4 L I N E O F T I C E I L I N G S F C S - 1 W I T H U N I S T R U T C E I L I N G S U B S T R U C T U R E , A L I G N W I T H B O T T O M O F G W B H E A D E R S S C H A N N E L H E A D E R J O I N T S E A L A N T 1 / 2 " 3 - 5 / 8 " C O L D F O R M E D F R A M I N G W I T H 5 / 8 " G W B O N B O T H S I D E S
