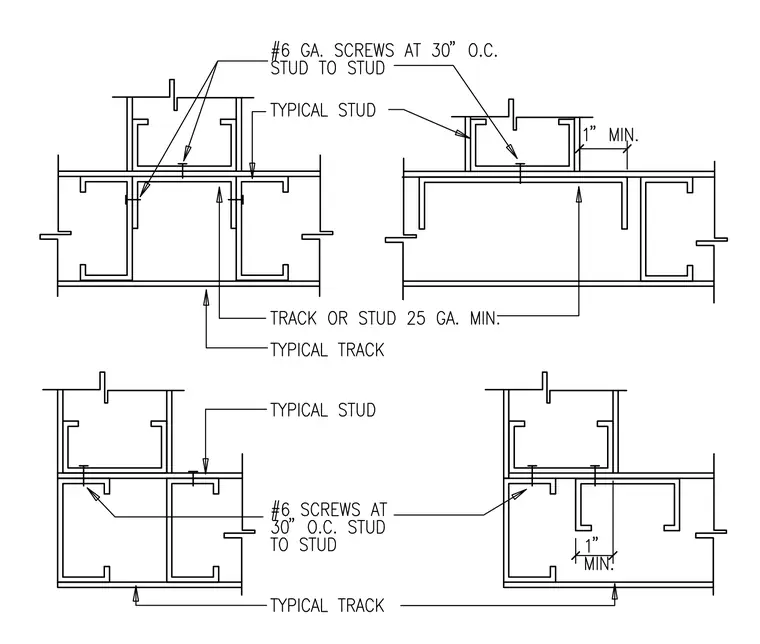

Cold-formed metal framing intersections feature typical studs and tracks of twenty-five gauge minimum thickness connected with number six gauge screws spaced at thirty inches on center from stud to stud. Various intersection geometries demonstrate stud placement relative to tracks with a one-inch minimum clearance shown in specific configurations.
