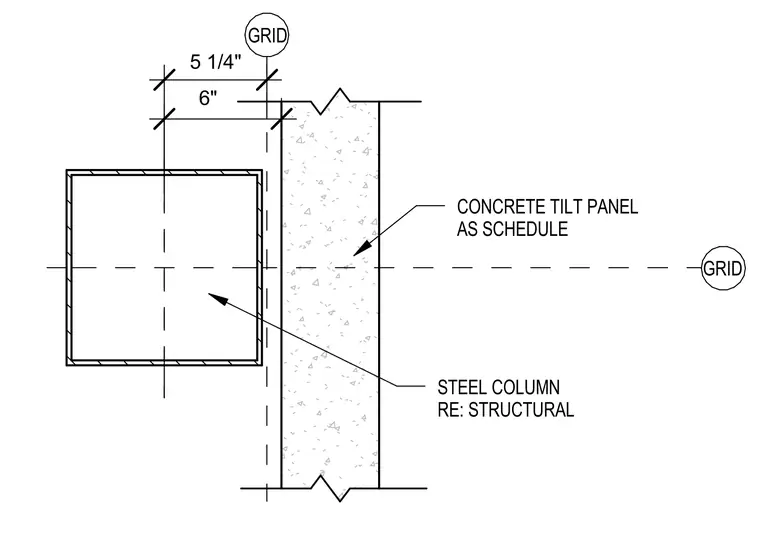

Dimensional relationship between a structural grid line, a steel column, and a concrete tilt-up panel. The steel column is set at a dimension of five and one-quarter inches from the grid line, while the concrete tilt-up panel is positioned at six inches from the same grid. The concrete tilt-up panel thickness and specifications are governed by the panel schedule. The steel column sizing and structural connections are coordinated with the structural drawings.
