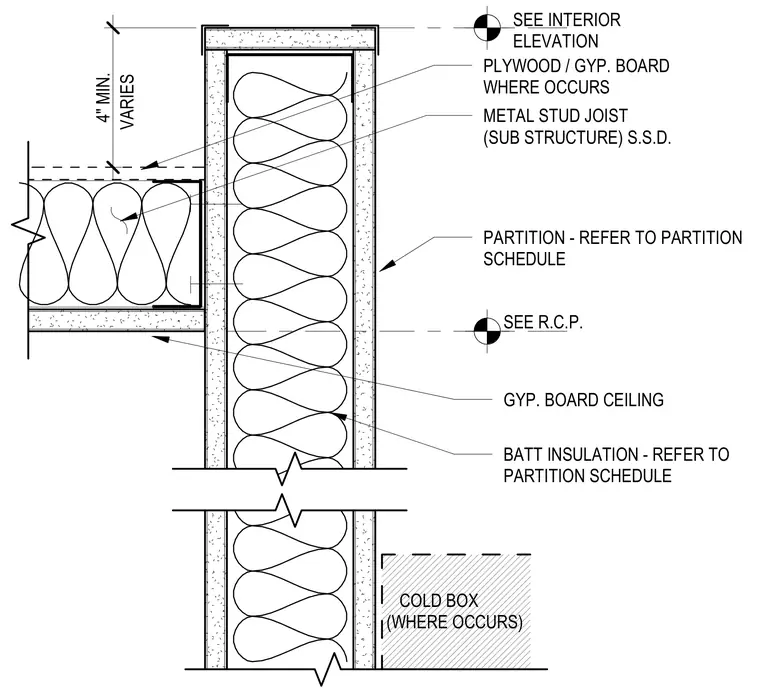

This interior partition detail shows a metal stud substructure wall framing faced with gypsum board and insulated with batt insulation. A gypsum board ceiling intersects the partition, supported by metal stud joists framing into the wall. Plywood or gypsum board backer is installed where required. Dimensions indicate a minimum four-inch clearance from the ceiling assembly to the top of the wall partition, with conditions varying based on the reflected ceiling plan.
METAL STUD JOIST (SUB STRUCTURE) S.S.D. PARTITION - REFER TO PARTITION SCHEDULE GYP. BOARD CEILING BATT INSULATION - REFER TO PARTITION SCHEDULE PLYWOOD / GYP. BOARD WHERE OCCURS SEE R.C.P. 4" MIN. SEE INTERIOR ELEVATION VARIES COLD BOX (WHERE OCCURS)
