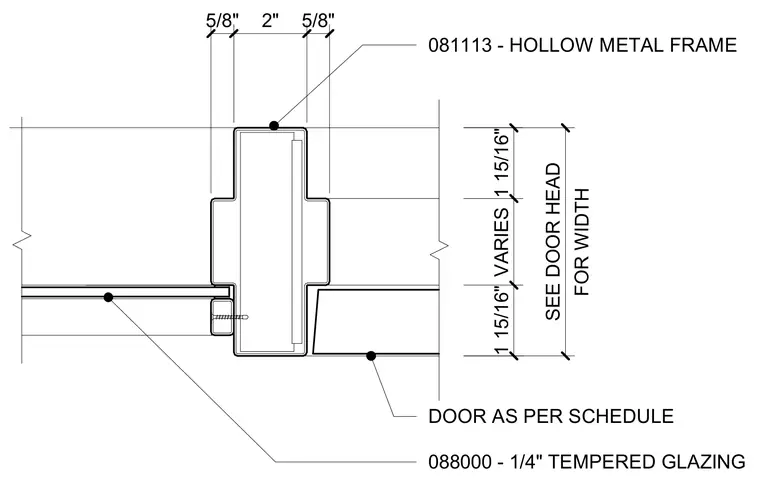

A hollow metal frame connects to a one-quarter-inch tempered glazing infill on one side and a scheduled door on the opposing side. The frame profile measures two inches across the main face with five-eighths-inch returns. The glazed opening utilizes a glazing stop secured with fasteners against the glass.
DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" 088000 - 1/4" TEMPERED GLAZING 081113 - HOLLOW METAL FRAME 5/8" 2" 5/8" FOR WIDTH SEE DOOR HEAD
