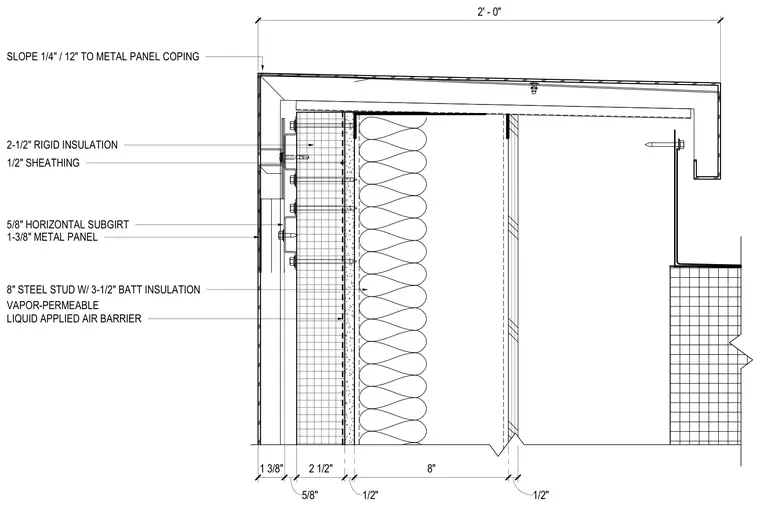

A parapet assembly finished with a metal panel coping sloped at one-quarter inch per foot toward the exterior. The exterior build-up consists of one-and-three-eighths-inch metal panels fastened to five-eighths-inch horizontal subgirts over one-half-inch sheathing and two-and-one-half-inch rigid insulation. A vapor-permeable liquid-applied air barrier coats the exterior face of the eight-inch steel studs, which are infilled with three-and-one-half-inch batt insulation.
SLOPE 1/4" / 12" TO METAL PANEL COPING 2-1/2" RIGID INSULATION 1/2" SHEATHING 1-3/8" METAL PANEL 5/8" HORIZONTAL SUBGIRT 8" STEEL STUD W/ 3-1/2" BATT INSULATION 1 3/8" 5/8" 2 1/2" 1/2" 8" 1/2" VAPOR-PERMEABLE LIQUID APPLIED AIR BARRIER 2' - 0"
