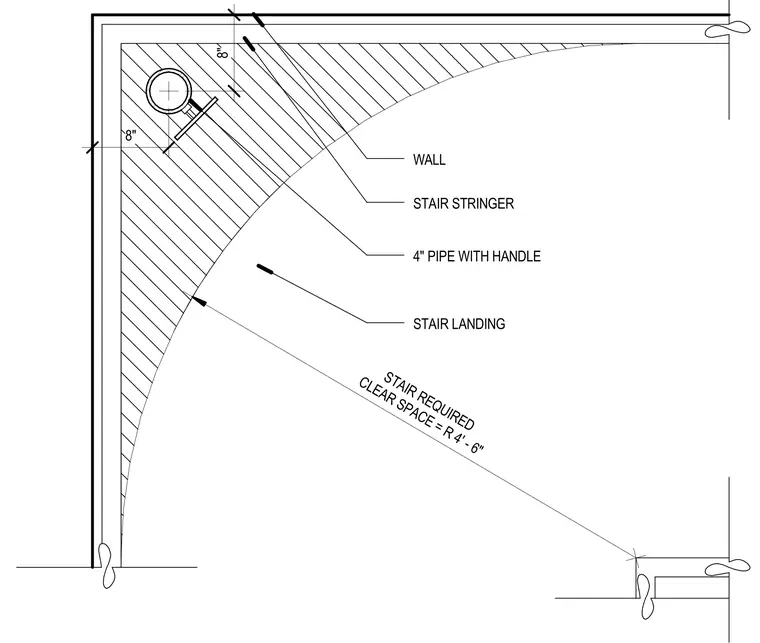

A stair landing with an adjacent four-inch pipe with handle meets surrounding walls with specified eight-inch clearances. A stair stringer frames the landing while maintaining a required clear space radius of four feet six inches.
8" 8" STAIR REQUIRED CLEAR SPACE = R 4' - 6" WALL STAIR STRINGER 4" PIPE WITH HANDLE STAIR LANDING
