Typical Composite Deck Edge Details

Materials

Steel Composite

Elements

Beams Stairs Railings / Guards Floors / Slabs Decks Connections / Plates Reinforcing Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

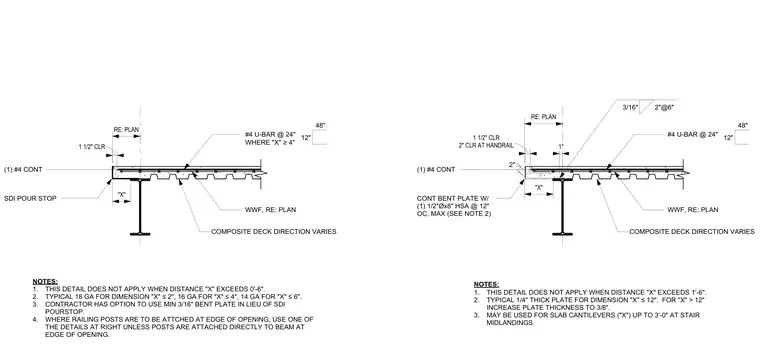

These details show composite metal deck slab edges supported by structural steel framing with varying cantilever dimensions. The edge conditions feature Steel Deck Institute pour stops, continuous bent plates anchored with heavy-duty sleeve anchors spaced at twelve inches on center, and continuous number four reinforcing bars. Welded wire fabric and number four U-bars spaced at twenty-four inches on center provide additional slab reinforcement where the cantilever distance requires it. Clearances, deck orientation, and plate thicknesses vary depending on the specific edge distance dimension X.
