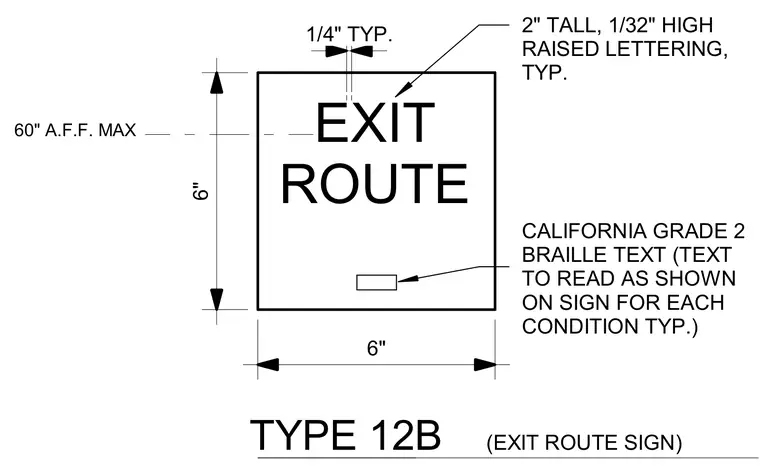

The exit route sign measures six inches square with a maximum mounting height of sixty inches above the finished floor. The sign features two-inch tall raised lettering with a one-thirty-second inch relief and one-quarter inch typical spacing. California Grade 2 Braille text is positioned below the main text as shown for each condition.
TYPE 12B EXIT ROUTE 1/4" TYP. 2" TALL, 1/32" HIGH RAISED LETTERING, TYP. (EXIT ROUTE SIGN) 6" 60" A.F.F. MAX CALIFORNIA GRADE 2 BRAILLE TEXT (TEXT TO READ AS SHOWN ON SIGN FOR EACH CONDITION TYP.) 6"
